Anti-Slip Stair Tread Nosing Without Drilling: AS1428 Compliance Guide for Commercial Properties

Stair treads in public areas need to meet the Australian Standard AS 1428. This standard requires that stair treads are clearly visible to avoid tripping incidents. A strip with at least 30% contrast set against the stair tread surface needs to be installed. Moreover, a P3 or P4 non-slip rating is required to comply with the Australian Standard for Slip Resistance (AS 4586).

Anti-slip stair tread nosing without drilling is the most efficient solutions. However, aluminium or plastic nosing strips are frequently used. Still, drilling is required to install such strips which in turn causes permanent damage to the surface. In many cases this is undesirable, especially for high quality natural stone finishes. Moreover, these strips are not exactly aesthetic.

The Stellmann Stair Tread Coat offers a solution to both these issues. This European-made non-slip coating is available as a clear coating and in a range of colours. Moreover, it is easy to install without any damage to the surface. The coating is applied by roller, is UV-resistant and dries quickly. And in contrast to stair nosing tapes, Stellmann does not leave glue residue on the surface and can be removed and reapplied.

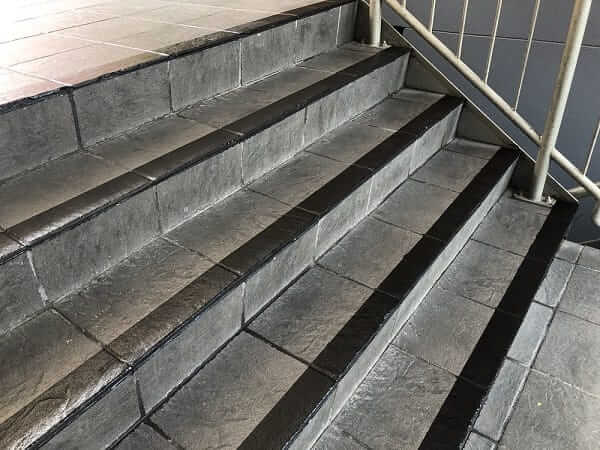

At a pedestrian stairway in North Melbourne, the Stellmann Stair Tread coating in black (RAL 9004) was used to make the stair treads clearly visible and non-slip. Especially in wet conditions, these treads were proving to be a slipping hazard. By installing the Stellmann coating in black, the treads have become clearly visible and non-slip. Now that Stellmann has been applied, the safety for users has been maximised. With the fast drying times, the stairway opened once again to the public on the same day of the installation, limiting inconveniences to residents. In conclusion, Stellmann provides the leading anti-slip stair tread nosing without drilling.

Why Drilling Damages Commercial Staircases

Physical stair nosing strips — typically aluminium or PVC extrusions — require mechanical anchoring directly into the stair tread surface. For facility managers and property professionals, this creates several categories of risk that are often not considered until after the damage is done.

Natural stone surfaces — marble, granite, terrazzo — are particularly vulnerable. Drilling through polished stone introduces micro-fractures around each anchor point. Over time, foot traffic load transfers through those fixings and widens those fractures. The result is surface delamination and spalling that cannot be reversed without full tread replacement. On a heritage terrazzo staircase, a single cracked tread can require specialist stone restoration at significant cost.

Structural integrity is equally at risk on thin-format tiles, which are increasingly common in commercial fitouts. Tiles under 10mm thick have limited tolerance for impact from drilling equipment. Grout lines adjacent to anchor points frequently fail within 12–24 months, creating a secondary trip hazard from the very strip installed to prevent one.

From a legal and insurance standpoint, physical alteration of a staircase in a strata or body corporate building typically requires formal committee approval and may affect the building's insurance position if work is not completed by a licensed contractor. Heritage-listed properties carry additional obligations: unauthorised drilling can constitute a breach of heritage permit conditions under state heritage legislation, exposing owners and OC managers to enforcement action.

For high-end commercial finishes — polished concrete foyers, marble hotel staircases, heritage sandstone entries — the aesthetic impact of exposed screw heads and aluminium extrusions represents a significant downgrade in presentation that cannot be undone without surface replacement.

AS1428.1 Stair Nosing Compliance Requirements

Australian Standard AS1428.1:2009 (Design for Access and Mobility) sets out mandatory requirements for stair tread nosings in buildings accessible to the public. Understanding these requirements is essential for facility managers, building certifiers, and property developers operating in Class 2–9 buildings under the National Construction Code (NCC).

The core AS1428.1 stair nosing requirements are:

• Minimum 50mm depth tactile strip: A contrasting strip must be applied across the full width of each stair tread, extending a minimum of 50mm from the nosing edge toward the back of the tread.
• 30% minimum luminance contrast: The nosing strip must achieve at least 30% luminance contrast against the adjacent tread surface. This is measured using the formula: LRV1 − LRV2 ÷ LRV1, where LRV is the Light Reflectance Value of each surface.
• P3 or P4 wet pendulum slip rating: Under AS4586:2013 (Slip Resistance Classification of New Pedestrian Surface Materials), stair treads in commercial and public buildings must achieve a minimum P3 rating under wet pendulum testing. P4 is recommended for high-traffic or wet-area stairs.
• NCC Section D provisions: NCC 2022 Section D (Access and Egress) references AS1428.1 for staircase design compliance. Non-compliant stairs can result in building certifier rejection at practical completion or during occupation certificate assessment.

AS1428.1 applies to all Class 2–9 buildings — this includes commercial offices, retail tenancies, aged care facilities, schools, hotels, and multi-unit residential buildings. It also applies to common areas of strata buildings, meaning OC managers carry direct compliance obligations for shared stairways.

Non-compliance consequences are material: building certifiers can issue a notice to remedy, WHS Act 2011 liability attaches to any slip injury where the duty holder failed to meet a known standard, and insurers may reject claims where non-compliant conditions are identified post-incident. For a full overview of staircase requirements under the building code, refer to the staircase building code guide. For a detailed breakdown of slip rating classifications, see the P4 vs P5 slip rating explained article.

Staircase Types and the Right Nosing Solution

Not all stair surfaces respond equally to conventional nosing strip installation. The following breakdown covers the six most common staircase types encountered in commercial and institutional settings, along with the specific failure modes of drilled nosing and why a coating-based solution is appropriate.

Natural Stone — Marble, Granite, Terrazzo

Key challenge: Natural stone is porous and structurally brittle at thin cross-sections. Drilling through marble or granite creates stress fractures that propagate under load. Terrazzo, being an aggregate matrix, cracks unpredictably around drill points.

Why drilling fails: Anchor points in natural stone loosen over time as micro-fractures widen. Water ingress through cracked anchor zones causes staining and sub-surface delamination.

Coating solution: A surface-applied coating bonds to the stone without penetrating its structure. The coating can be removed without residue, which is critical for heritage stone surfaces subject to conservation management plans.

Polished Concrete

Key challenge: Polished concrete staircases in commercial fitouts are valued for their surface integrity. Drilling disrupts the densified surface layer, exposing the porous substrate to moisture and contamination.

Why drilling fails: Anchor bolts in polished concrete rely on expansion force, which over time causes the surrounding surface to chip and spall, particularly under high foot traffic vibration.

Coating solution: Anti-slip coating applied over polished concrete maintains the surface plane and can be formulated to match the existing finish sheen where a clear coating is specified.

Ceramic and Porcelain Tile

Key challenge: Tiled staircases present dual failure risks — tile cracking from drilling impact, and grout line failure adjacent to anchor points.

Why drilling fails: Standard ceramic tiles under 8mm thick frequently crack during drilling. Even where tiles survive, grout lines within 50mm of anchor points typically fail within 18 months, creating a ledge trip hazard.

Coating solution: Coating is applied continuously across the tread face and nosing zone, bridging grout lines without creating anchor-point stress concentrations.

Heritage and Listed Buildings

Key challenge: Heritage permits issued under state heritage legislation typically prohibit irreversible physical alteration to significant fabric. Standard nosing strips require drilling and leave permanent anchor holes.

Why drilling fails: Any drilling without heritage authority approval constitutes unauthorised works and may trigger enforcement, remediation orders, or permit revocation.

Coating solution: Surface-applied coatings that can be removed without residue meet the reversibility requirement standard in most heritage impact statements, making coating the only viable compliant solution in many listed building contexts.

Timber Staircases

Key challenge: Timber expands and contracts seasonally. Anchor points drilled into timber treads create fixed stress points that the timber moves against, loosening fixings over time and raising nosing edges.

Why drilling fails: Raised nosing edges from loose fixings create trip hazards more serious than the original unprotected tread. Timber also splits along grain lines during drilling if pilot holes are not precisely executed.

Coating solution: Coating flexes with timber movement and does not create fixed anchor stress points. It can be reapplied at each maintenance cycle without cumulative surface damage.

Metal and Grating Stairs

Key challenge: Metal stairs — including open grating, checker plate, and fabricated steel — often have existing surface texture or grip patterns that must be preserved or enhanced rather than covered with a strip.

Why drilling fails: Drilling into metal stair structures requires specialist equipment, may compromise structural welds or coatings, and adds dissimilar metal contact points that accelerate corrosion.

Coating solution: Anti-slip coating can be applied over existing metal surfaces to enhance grip rating without interfering with structural elements or existing surface profiles.

How Anti-Slip Stair Coating Works as a Nosing Solution

Stair Tread Coat is applied using a standard paint roller, making it accessible to trained maintenance staff without specialist trades. The application process follows four stages: surface preparation, priming (where required by surface porosity), coating application, and cure.

Surface preparation involves cleaning the tread with a degreaser to remove oils, waxes, and contaminants. On polished or dense surfaces, a mechanical scuff or chemical etch may be required to achieve adequate adhesion. Priming is surface-specific — porous substrates such as raw concrete or unfinished stone typically require a primer coat. Non-porous surfaces such as glazed tile or polished marble are assessed on a case-by-case basis.

The coating is applied by roller across the nosing zone — a minimum of 50mm from the leading edge, consistent with AS1428.1 requirements — and allowed to cure for 2–4 hours at ambient temperature. Same-day reopening is achievable in most commercial settings, eliminating extended staircase closures that would otherwise require alternative access arrangements.

Product specifications for Stair Tread Coat include:

• Colours: Clear, RAL 9004 (signal black), safety yellow, and a full RAL colour range on request
• UV resistance: Formulated for outdoor and UV-exposed stairways without colour degradation
• Slip rating achieved: P3–P4 wet pendulum result under AS4586:2013 test conditions, confirmed by independent laboratory testing
• Service life: 3–5 years in commercial foot traffic conditions; lower-traffic areas may exceed this range
• Removal: No adhesive residue on removal; surface returns to pre-application condition, meeting reversibility requirements for heritage contexts

Cost comparison is significant for facility budget planning. Physical aluminium nosing strip installation — including trades, materials, surface reinstatement, and downtime — typically runs at $150–$200 per linear metre in commercial settings. Surface-applied anti-slip coating runs at approximately $35 per square metre applied, with no associated reinstatement cost and a fraction of the access disruption. For a 20-tread commercial staircase with 1200mm wide treads, the cost differential is material.

Commercial Properties Where This Matters Most

Anti-slip stair coating without drilling has specific relevance across several commercial property categories where the intersection of compliance, aesthetics, and operational continuity creates a case that physical nosing strips cannot meet.

Aged care facilities: Aged care operators are subject to both the WHS Act 2011 and ACQSC accreditation standards under the Aged Care Quality Standards. Standard 8 (Organisation's Service Environment) requires that the physical environment supports safety for residents with mobility impairments. Stair non-compliance in an aged care assessment can directly impact facility accreditation. Non-invasive coating application avoids disruption to residents who depend on the stairway daily and eliminates the trip hazard risk that raised nosing strip edges create for residents with walking frames or limited step clearance.

Strata buildings: Owners corporation managers navigating committee approval processes find non-invasive solutions significantly easier to pass through building approval. Physical alteration to common property typically requires a special resolution under the relevant state strata legislation. A coating-based solution — particularly one that is reversible — reduces the scope of the approval required and eliminates the risk of structural alteration liability flowing to the OC.

Shopping centres: High foot traffic retail environments require after-hours application to avoid trading disruption. The 2–4 hour cure time of stair tread coating makes overnight application and same-morning reopening achievable, whereas physical nosing installation typically requires multi-day closures including curing of adhesives and reinstatement of adjacent surfaces.

Heritage buildings: Properties such as heritage-listed commercial buildings — including early twentieth-century arcade and retail buildings of the type found in Sydney and Melbourne CBDs — frequently require compliance upgrades without the ability to alter significant fabric. Reversible coating is the only solution that satisfies both the building certifier and the heritage authority in these contexts.

Schools and childcare centres: State education departments and childcare regulators impose safety obligations equivalent to commercial WHS requirements. Schools face an additional constraint: budget cycles and procurement rules mean that fast, low-disruption, low-cost compliance solutions are strongly preferred over capital works involving trades and structural modification.

Hotels and hospitality: Hotel operators balance compliance with presentation. A visible aluminium nosing strip on a polished marble hotel staircase is a brand presentation problem as much as it is an installation problem. Clear or colour-matched coating maintains the finish integrity while achieving the required slip rating and luminance contrast.

Frequently Asked Questions

Does anti-slip stair coating actually meet AS1428.1 requirements?

Yes, when correctly specified and applied. AS1428.1:2009 requires a tactile strip of at least 50mm depth from the nosing edge, with a minimum 30% luminance contrast against the adjacent tread surface, and a slip rating of P3 or P4 under AS4586:2013 wet pendulum testing. Stair Tread Coat applied to the nosing zone meets the dimensional requirement when applied to the specified 50mm minimum depth. The luminance contrast requirement is met by selecting an appropriate colour — RAL 9004 black delivers contrast ratios well above 30% on most mid-tone or light-coloured tread surfaces. The slip rating is confirmed by independent wet pendulum test results, which are available on request for building certifier submissions. Facility managers should document the product technical data sheet, the independent test certificate, and photographic evidence of the 50mm application depth as part of their compliance file.

How long does stair tread coating last before reapplication?

In commercial foot traffic settings — defined as staircases receiving 200 or more users per day — the expected service life of Stair Tread Coat is 3–5 years before reapplication is required to maintain the slip rating and contrast specification. Actual service life varies depending on surface preparation quality, substrate type, cleaning regime, and traffic volume. Heavily used exit staircases in retail or transit settings may require assessment at the 2–3 year mark. Lower-traffic settings such as internal office staircases or residential common areas typically reach or exceed the upper end of the range. Reapplication does not require surface reinstatement — the existing coating is cleaned, lightly abraded if required, and recoated. There is no cumulative surface damage from successive reapplication cycles, which distinguishes it from drilled nosing strips where each replacement cycle requires filling and reinstatement of anchor holes.

Can I apply anti-slip coating to outdoor commercial staircases?

Yes. Stair Tread Coat is formulated to be UV-resistant and is suitable for outdoor stairways exposed to direct sunlight and weather. The UV-stable formulation prevents colour degradation and coating breakdown from solar exposure, which is a common failure mode in lower-specification anti-slip tapes and adhesive products used outdoors. For outdoor applications, surface preparation is more critical — the tread must be fully dry and free of contaminants before application, and ambient temperature during application must be within the product's specified range (typically 10–35°C). In coastal or high-humidity environments, additional attention to surface moisture content is required. Outdoor service life may be at the lower end of the 3–5 year range depending on UV load and rainfall exposure. Clear coating is not recommended for outdoor applications where colour contrast is required for AS1428.1 compliance — a contrasting colour should be specified to ensure the 30% luminance contrast requirement is maintained over the coating's service life.

What is the difference between stair nosing tape and anti-slip coating?

Anti-slip tape is an adhesive-backed product applied to the tread surface. Anti-slip coating is a liquid product applied by roller that cures to form a continuous film bonded to the substrate. The practical differences are significant for commercial property managers. Tape products rely on adhesive bond strength, which degrades with moisture exposure, cleaning chemical contact, and temperature cycling. Tape edges lift over time, creating a trip hazard and requiring replacement. Tape removal leaves adhesive residue that requires solvent cleaning and may stain porous surfaces. Coating products do not use adhesive — they bond chemically to the substrate surface. Removal is clean, with no residue on properly prepared surfaces. Coating is also continuous — there are no exposed edges to lift. From a compliance standpoint, tape products vary significantly in achieved slip ratings, and not all products carry independent AS4586 test certification. Coating products with documented P3–P4 test results provide a clearer compliance pathway for building certifier submissions.

Will anti-slip coating change the appearance of my heritage stone stairs?

The degree of visual change depends on the colour specified. Clear coating applied to natural stone — marble, terrazzo, granite — produces a minimal visual change, typically a slight increase in surface sheen similar to a sealer coat. The stone texture, veining, and colour remain visible. Where colour contrast is required under AS1428.1, a coloured coating is applied to the 50mm nosing zone only, leaving the remainder of the tread in its natural state. This is a less visually intrusive outcome than a full-width aluminium nosing strip, which covers the nosing edge entirely and introduces a dissimilar industrial material into a heritage finish context. From a heritage assessment perspective, coating is considered a surface treatment rather than a physical alteration, and it meets the reversibility requirement standard applied by most state heritage authorities — meaning the surface can be returned to its pre-application condition without damage. Where a heritage impact statement or conservation management plan is in place, the coating specification and reversibility characteristics should be documented and included in any works approval application.

How quickly can treated stairs be reopened after application?

Under standard commercial conditions — ambient temperature between 15°C and 30°C, low humidity — Stair Tread Coat reaches a safe foot traffic cure within 2–4 hours of application. This is the characteristic that makes same-day staircase reopening achievable in most commercial settings. For context, physical nosing strip installation involving adhesive or epoxy anchoring typically requires a minimum 24-hour cure before foot traffic is permitted, with full mechanical load capacity requiring 48–72 hours. The 2–4 hour window allows application teams to work through a staircase in sections — treating alternate treads, allowing cure, then treating remaining treads — so that pedestrian access via the staircase is never fully interrupted for more than the time required to treat a single tread section. For after-hours commercial applications such as shopping centres or hotel common areas, the treatment can be completed overnight with the staircase fully operational before opening. In cooler conditions below 15°C, cure times should be extended and confirmed by touch test before reopening. A simple heel-strike test on a cured nosing zone — checking for no surface transfer — is the practical field confirmation that the tread is safe to reopen.
